How to configure a device to use eduroam

Note: DO NOT USE below info for KTH Windows (WIKS) or KTH Mac (MIKS) platform. eduroam should be automatically installed/updated on those platforms.

updated 2016-02-29

IMPORTANT NOTE:
As of December 9 2015 KTH eduroam has a new certificate installed which is issued by DigiCert Certificate Authority. This could affect your login to eduroam in the way that you might have to accept the new certificate - and reenter your KTH username (don't forget @kth.se) and network secret. It is recommended that you (re)configure eduroam in your device by using the configuration tool CAT (se below).

eduroam stands for education roaming and is an international cooperation between universities. It provides researchers, teachers and students easy and secure network access at the home university and when visiting an institution other than their own - with no changes to the computers configuration. You can read more about eduroam here.

NOTE: You will need a special network secret to login to KTH's wireless network. You cannot use the password you have for your ordinary KTH.SE login.
Get your eduroam network secret at: https://login.sys.kth.se/peap.html

Use eduroam Configuration Assistant Tool (CAT) for configuration or reconfiguration of eduroam. The tool installs the CA Root certificate and (re)configures the wireless settings for eduroam. After configuration you will be asked for your KTH username (which must include "@kth.se", i.e user@kth.se) and network secret.

• When you enter your username and network secret be sure not to add any leading or trailing whitespace. Your login to eduroam will fail otherwise.


The CAT tool is available for Windows, MacOS X, Linux, iOS devices (e.g. iPhone, iPad) and Android (4.3 and above)

Goto the CAT site https://cat.eduroam.org.

On the page, press this button

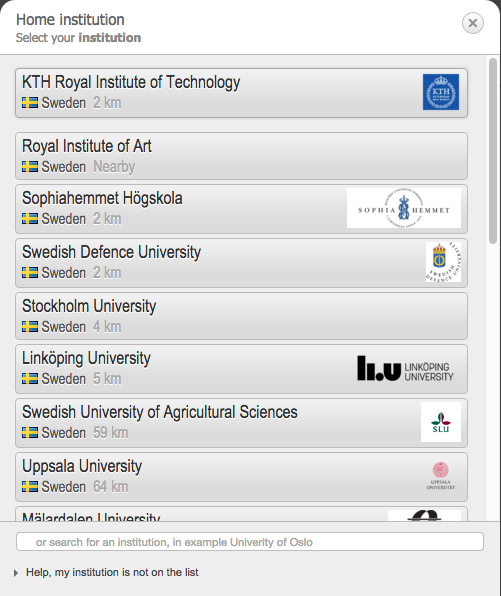

Choose KTH Royal Institute of Technology



The right installer shows up, click on it and follow the instructions. For more information, click on the blue i- button.



Although not recommended, you can also download the tool from here



TECHNICAL DETAILS:

If you are interested in security or need to manually install eduroam - here are some information about CERTIFICATES

The following certificates are used for eduroam from Dec 9 2015:

CA certificates

DigiCertAssuredIDRootCA.pem
DigiCertAssuredIDRootCA.der
  SHA1 Fingerprint = 05:63:B8:63:0D:62:D7:5A:BB:C8:AB:1E:4B:DF:B5:A8:99:B2:4D:43
  MD5 Fingerprint = 87:CE:0B:7B:2A:0E:49:00:E1:58:71:9B:37:A8:93:72

DigiCertCA.pem
DigiCertCA.der
  SHA1 Fingerprint = 77:B9:9B:B2:BD:75:22:E1:7E:C0:99:EA:71:77:51:6F:27:78:7C:AD
  MD5 Fingerprint = 66:F7:3C:E9:81:3C:72:82:3A:0B:3C:19:38:A7:7F:42

KTH eduroam server certificate fingerprint:
  SHA1 Fingerprint = 2A:CD:06:F9:80:07:D7:58:72:EF:B6:F1:E7:A8:A4:3A:59:89:5F:B7
  MD5 Fingerprint = B7:C1:C6:C2:C0:5E:AE:4A:06:74:92:2C:35:F1:7D:DA

Manual Instructions if the configurator is not available for your device:

Older versions of Phones and mobile devices (Android etc)

Older Linux
